Best pegboard for a garage
Three materials, three very different levels of disclosure, and one that publishes no capacity at all.
#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked September 17, 2026.
Quick picks
Ranked on published capacity normalized per square foot, then on whether the maker states the fixing and the per-hook limit that capacity assumes.
| # | Product | Best for | Published rating | Buy |
|---|---|---|---|---|
| 1 |  Best overall Wall Control 16in x 32in Metal Pegboard Panel 200 lb per panel into studs, 100 lb into anchors, per-hook limits published. | Hand tools you want to rearrange often, on any wall | 200 lb / panelInstall doc | |
| 2 |  Best for a damp garage Triton DuraBoard Polypropylene Pegboard, 24 x 48 in (2-Pack) 250 lb per 24 x 48 board in polypropylene, which does not swell. | A damp or unheated garage where hardboard would swell | 250 lb / panelRetailer listing | |
| 3 |  If you want a panel, not pegboard Gladiator 4' GearWall Panels (2-Pack) A slatwall alternative at 50 lb per square foot, with the Gladiator hooks. | Buyers already committed to Gladiator hooks and baskets | 50 lb / sq ftManufacturer | |
| — | No photo We would skip this one Triton Tempered Hardboard Pegboard, 24 x 48 in (2-Pack) The cheapest board here, and the only one with no published capacity. | The cheapest possible hook wall in a dry, heated space | Not published |
#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked September 17, 2026.
Pegboard is the cheapest hook wall there is, and the one people most often buy without looking at a single number — because the classic brown board has been in garages for seventy years and nobody thinks of it as a product with a rating. Two of the three materials on this page do publish one. The comparison between them is more interesting than it should be.
How this was judged
Every pegboard maker that publishes a capacity publishes it per panel, and the panels are different sizes. So the first step is arithmetic: divide the published figure by the panel area to get pounds per square foot, and say so. The second criterion is the fixing — a board rated into studs and a board rated into nothing are not the same board. The third is the per-hook figure, which is the one you meet first, because a pegboard hook engaging one hole is the weakest link in any wall built from this stuff.
Wall Control from its own installation guidance; Triton from retail listings. Read 2 and 11 September 2026. The per-square-foot column is our arithmetic.
| Board | Published | Per sq ft | Fixing stated |
|---|---|---|---|
| Wall Control (20-gauge steel) | 200 lb / 16×32″ panel | ~56 lb | Yes — studs; 100 lb into drywall anchors |
| Triton DuraBoard (polypropylene) | 250 lb / 24×48″ board | ~31 lb | Not published |
| Triton tempered hardboard | “Two times standard pegboard” | Not published | Not published |
The top row is the whole argument for metal. Not because 56 lb per square foot is a large number — a Proslat panel publishes 75 — but because Wall Control publishes what it assumes: studs or anchors, and a different number for each, plus 10 to 15 lb per hook engaging two slots and 5 to 10 lb for one. Nothing else on this page comes close to that level of disclosure, and in a category where the hook is the limit, the per-hook figure is the one that decides what you can actually hang.
2×
How much capacity Wall Control publishes for a panel fixed into studs against the same panel on drywall anchors: 200 lb against 100 lb. Same steel, half the number, purely from the fixing. It is the clearest published statement of that effect in this category.

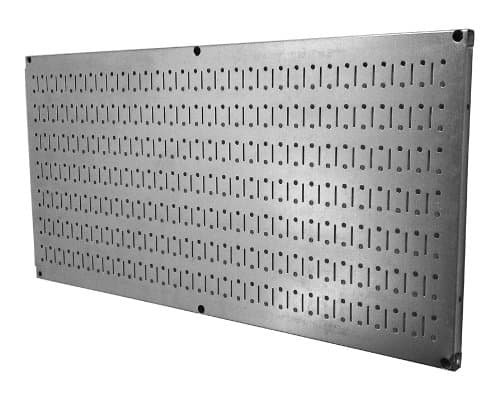

Wall Control 16in x 32in Metal Pegboard Panel
Wall Control · Metal Pegboard Panel
#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked September 17, 2026.
Not slatwall at all, and the most honestly documented product in this entire comparison. Wall Control publishes two capacities for two mounting methods — 100 lb per panel into drywall anchors, 200 lb into studs — plus per-hook and per-shelf limits and a written caveat about what the numbers assume. Everyone else should be doing this.
- Load distance:
- not stated by the manufacturer, so treat the figure as a flat-against-the-wall number
- Fastening:
- Into studs; 100 lb per panel with drywall anchors instead
Wall Control states the assumption in writing: 'properly installed panels, weight relatively evenly distributed across the panel face, as well as weight situated at the base of each hook or shelf as opposed to the tip.' Per-hook limits are published too: 10-15 lb for a hook engaging two slots, 5-10 lb for one slot.
- Published rating
- 200 lb / panelInstall doc
- Dimensions
- 16" x 32" panelManufacturer
- Steel gauge
- 20 gauge steelManufacturer
- Thickness
- Not published
- Material
- Not published
- Coverage
- Not published
- Warranty
- Not published
- Publishes a different rating for drywall anchors and for studs — nobody else does
- Publishes per-hook, per-shelf and per-bin limits as well as per-panel
- Steel, so a dropped tool does not gouge it the way it gouges PVC
- Rated per panel, so comparing it to slatwall needs arithmetic (we do it)
- Hooks engage slots rather than a continuous groove, so placement is less free
Twenty-gauge steel with slots as well as holes, so both pegboard hooks and Wall Control’s own slotted accessories fit. Two hundred pounds per panel into studs, a hundred into anchors, per-hook limits in writing, and a written caveat about how the numbers assume the load sits — it is the most honestly documented product on this site, and that is why it ranks first.
The honest limits: it costs several times what hardboard does per square foot, the panels are small and a wall takes many of them, and 56 lb per square foot is under what a PVC slatwall panel publishes. Buy it for the disclosure and the hooks, not for a headline number.
Triton DuraBoard Polypropylene Pegboard, 24 x 48 in (2-Pack)
Triton Products · DuraBoard 24" x 48" Polypropylene Pegboard (2-Pack)
#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked September 17, 2026.
The plastic middle ground: 1/4 inch polypropylene rated 250 lb per 24 by 48 board, which works out at about 31 lb per square foot. Less than metal, far more than hardboard publishes, and it will not absorb moisture the way board does.
- Load distance:
- not stated by the manufacturer, so treat the figure as a flat-against-the-wall number
- Fastening:
- not stated by the manufacturer
Published as a 250 lb load capacity per 24 x 48 inch board. Over 8 square feet that is roughly 31 lb per square foot - our arithmetic. No fastener or spacing is stated.
- Published rating
- 250 lb / panelRetailer listing
- Dimensions
- 24" x 48" x 1/4", 1/4" holes on 1" centersRetailer listing
- Steel gauge
- Not published — this manufacturer does not state one
- Thickness
- Not published
- Material
- 1/4 inch polypropyleneRetailer listing
- Coverage
- Not published
- Warranty
- Not published
- Publishes a per-board capacity, which hardboard almost never does
- Polypropylene does not absorb moisture or fray around the holes
- Standard 1/4 inch holes on 1 inch centers take ordinary pegboard hooks
- Cheaper per square foot than metal pegboard
- Roughly 31 lb per square foot, well under Wall Control's metal panel
- No fastener, spacing or load distance published
- Figures come from the retail listing rather than a manufacturer spec sheet
- Flexes more than steel between fixings
Quarter-inch polypropylene with standard quarter-inch holes on one-inch centers, so every pegboard hook you already own fits it. The published 250 lb per 24 by 48 board is a retail-listing figure, and it converts to roughly 31 lb per square foot — about half the metal panel.
The reason to choose it over hardboard is not the number, it is the material. Polypropylene does not absorb moisture, does not swell, and does not fray around the holes, which is exactly how hardboard fails in an unheated garage. The reason not to choose it over metal is that no fixing and no per-hook figure are published, so you are on your own for both.
Gladiator 4' GearWall Panels (2-Pack)
Gladiator · GearWall Panels
#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked September 17, 2026.
The lowest published panel rating in this comparison at 50 lb per square foot, which is easy to miss because Gladiator rates its own GearTrack rail in a completely different unit on an adjacent page. Buy it for the accessory ecosystem, not for the load number.
- Load distance:
- not stated by the manufacturer, so treat the figure as a flat-against-the-wall number
- Fastening:
- not stated by the manufacturer
Published as 'Holds 50 lbs per square ft.'
- Published rating
- 50 lb / sq ftManufacturer
- Dimensions
- 48" W x 12" H x 0.75" DManufacturer
- Steel gauge
- Not published — this manufacturer does not state one
- Thickness
- Not published
- Material
- Not published
- Coverage
- Not published
- Warranty
- Not published
- Largest first-party accessory range of any system here
- Color-matched screws included
- Rated by Gladiator to handle heat, cold and humidity extremes
- 50 lb/sq ft is the lowest published panel rating in this comparison
- Neither a load distance nor a stud spacing is published
Not pegboard — a PVC slatwall panel that takes Gladiator’s slotted hooks rather than pegs. It is here because a lot of people searching for pegboard actually want continuous hook placement across a whole wall, and that is what a panel field gives you.
Fifty pounds per square foot is the lowest published panel rating on this site and it is still comparable to the metal pegboard above. The trade is proprietary hooks and a higher price bracket, against a bigger accessory range. The full case is in the Gladiator wall system review.
Triton Tempered Hardboard Pegboard, 24 x 48 in (2-Pack)
Triton Products · TPB-2 Tempered Hardboard Pegboard 24" x 48" (2-Pack)
#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked September 17, 2026.
The classic brown pegboard, in its better tempered form. The listing says it holds twice the weight of standard pegboard and never says what standard pegboard holds - so there is no absolute figure to rank it on, which is why it sits at the bottom of any published-rating comparison.
- Published rating
- Not published — no load figure from this manufacturer
- Dimensions
- 24" x 48" x 1/4", round holesRetailer listing
- Steel gauge
- Not published — this manufacturer does not state one
- Thickness
- Not published
- Material
- 1/4 inch tempered hardboardRetailer listing
- Coverage
- Not published
- Warranty
- Not published
- Cheapest route to a hook wall by a wide margin
- Tempered, so it does not fray around the holes the way untempered board does
- Every pegboard hook ever made fits it
- No absolute load capacity published anywhere - only a relative claim
- Hardboard swells in a damp garage and hooks then pull through
- Needs furring strips behind it for hooks to seat at all
- Sags between fixings on a 48 inch span if not framed
The classic board, in its better tempered form, at a price nothing else here approaches. The listing says it holds twice the weight of standard pegboard, and never says what standard pegboard holds, so there is no figure — only a ratio to an unstated number. On a site that ranks on published capacity, that is last place by definition.
It is still the right buy for one garage: a dry, heated one, where the load is screwdrivers and pliers, and where cost per square foot is the only criterion. Fix it on furring strips so the hooks can seat, keep it off damp walls, and do not hang anything on it you would mind picking up off the floor.
What pegboard is bad at
- The items are many, small and light: hand tools, tape, cords
- Placement freedom matters more than capacity
- The budget per square foot is the deciding factor
- You already own a box of pegboard hooks
- Anything heavy is going on it - hooks are rated 5 to 15 lb each
- The garage is damp and the board is hardboard
- You want shelves and baskets rather than hooks - see slatwall or a rail
- The wall is masonry, since every rating here assumes studs or anchors
That first weakness is the one to take seriously. A pegboard wall is a wall of hooks, and Wall Control publishes 10 to 15 lb for a hook engaging two slots. That is a hammer or a drill, not a bike. For the heavier things, a rail or a panel system publishes far higher accessory figures — the rail decision is in GearTrack versus FastTrack, the panel field is ranked in best garage wall systems, and the three-way decision is in slatwall versus pegboard versus French cleat.
Common questions
Is metal pegboard better than regular pegboard?
How much weight can pegboard hold?
Do standard pegboard hooks fit metal pegboard?
Does pegboard need to be mounted on furring strips?
Sources
- Wall Control installation guidance — 200 lb/panel into studs, 100 lb into anchors, per-hook limits
- Triton DuraBoard 24 x 48 retail listing — 250 lb per board, 1/4 in polypropylene
- Triton TPB-2 tempered hardboard retail listing — no absolute capacity published
- Gladiator GearWall panels — 50 lb per square foot
Figures were read on the dates shown against each source. If one has changed, or if we have got something wrong, tell us and we will correct the page.
