Best heavy duty garage shelving

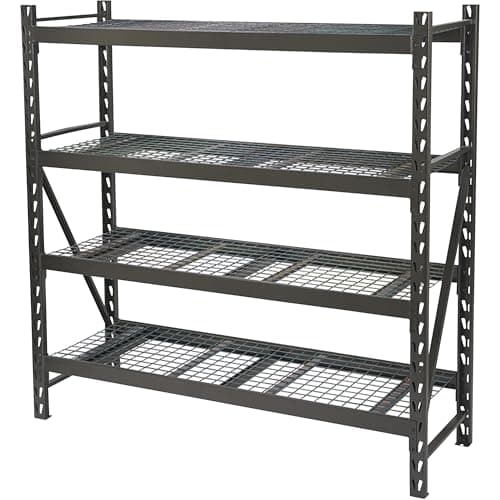

It clears the capacity bar this page set — 2,000 lb per shelf published rather than a total to divide — and it is the only rack here at that figure with a live price. Twenty-four inches deep, 77 wide, and it publishes something none of the others do: the deck is 4 mm steel mesh, on 8 crossbeams with 4 extra support bars.

It does not clear the other half of the bar, and we are not going to pretend otherwise: the frame is powder-coated and rivet-locked, never stated as welded, so how square and tight it ends up is partly down to your assembly. It leads on availability, not on construction. The rest of the marks against it apply to everything on this page: retail-listing figures rather than a manufacturer sheet, no shelf span, no steel gauge. Load the ends.

Two thousand pounds per shelf on the shortest span here, with metal shelves rather than wire or laminate and a welded steel frame stated on the page. If the missing-span question worries you, the 60 inch rack is the one where it matters least, and it is the smallest footprint here for a garage that has to keep a car in it.

Eighteen inches of depth is the limit: a tire does not lie flat and a standard tote hangs over the edge. Gladiator publishes no steel gauge and no warranty on the rack page, which it does not do for any of its shelving. And as we write, its Amazon listing reads “currently unavailable” — the buy button goes to a search rather than a dead page, and Gladiator still lists the rack directly.

Same frame family, same 2,000 lb figure, six more inches of depth and seventeen of width. Twenty-four inches is what totes two deep and a mounted tire actually need, and for a garage where the heavy things are also the bulky things this is the better trade.

The cost is floor — 77 by 24 inches is a serious bite out of a one-car bay — and the span question is sharper here than on the 60 inch rack. Load the ends first.

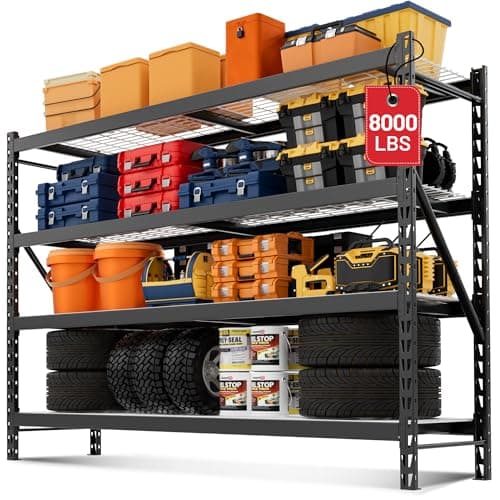

Two thousand pounds per shelf and 8,000 lb per unit in the same 77 by 24 inch footprint as the rack that leads this page, for meaningfully less. On the number this page ranks on, it ties the winner.

It does not lead because of the entry condition. The listing states powder-coated steel and never states a welded frame, and a welded frame is half of what “heavy duty” means here. That is a missing disclosure rather than proof of a weaker rack — if you can inspect the joints before buying, the saving is real.

The only rack here from an industrial-supply brand, and the only one with wire decking. Edsal publishes 2,000 lb per shelf on welded frames with three tie-bars per level, shelves that adjust in 1.5 inch increments, foot plates for floor mounting and NSF certification for dry storage. Wire lets dust and spills fall through rather than pool, which matters under fluids.

Three honest marks against it. The warranty is one year, against the lifetime language Gladiator uses elsewhere in its range. Retail listings for this size quote 1,500, 2,000 and 6,000 lb totals across different SKUs, so buy against the manufacturer’s figure and check the model number matches. And as we write the Amazon listing for this size reads “currently unavailable”, so the button goes to a search.

Ninety inches wide, ninety tall, twenty-four deep, four adjustable shelves at 2,000 lb each. It is the most storage volume of any single unit covered on this site, and it uses the wall height a 72 inch rack leaves empty.

It ranks last of the qualifying racks for the same reason it holds the most: it is the widest span with the same unloaded figure, and it is tall enough that a loaded unit standing free is a hazard. Strap it to the studs, keep the heavy things low and at the ends, and measure the ceiling twice. Its Amazon listing also reads “currently unavailable” as we write, so the button goes to a search.
