Slatwall inserts explained

Search for slatwall inserts and you will get three products that have almost nothing to do with each other, at prices an order of magnitude apart, described with the same word. One is a structural part. One is decoration. One is a bracket. People buy the wrong one constantly, and the listings do very little to stop them.

The three things called an insert

Aluminum groove inserts are extruded strips that press into the routed channel of an MDF or wood slatwall panel. The channel in bare MDF is the weak point of that whole product class — it is a groove cut into compressed wood fiber, and a hook under load is trying to tear it open. An aluminum insert lines that channel so the hook bears on metal instead.

Vinyl inserts slide into the same channel and do nothing structural whatsoever. They are a retail-display product for color-matching a shop fitting. They are also cheap, which means they come up first in a lot of searches, which means a buyer looking for reinforcement can easily end up with a decorative strip.

Backplates are not inserts at all in any structural sense. They are small steel plates with pre-drilled holes that screw onto the back of an object so the object can hang on slatwall. Useful, genuinely — but a completely different purchase.

The reinforcement question nobody answers

Here is the problem with buying an aluminum insert, stated plainly. The product exists to raise the capacity of an MDF groove. Neither insert on this page publishes what the groove holds before, what it holds after, or how much the insert adds. Nor does any panel manufacturer publish a with-insert rating for its own panels. So the entire value proposition is unquantified on both sides of the transaction.

This is the same gap documented in slatwall accessories and compatibility, where the accessory almost never carries a published rating even though it is the part that fails first. Inserts complete the picture: the product sold specifically to fix the weak link does not publish a figure either. If you want capacity you can actually plan against, the answer is not an insert — it is a panel that publishes a rating in the first place, which is what slatwall weight capacity sets out brand by brand.

The picks

Best documented reinforcement

Orange Aluminum Rounded Slatwall Insert, 48" (10-Pack)

Orange Aluminum · SWR63-48BA-PK10 Rounded Aluminum Slatwall Insert

$134.69 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 13, 2026.

The only insert here that tells you what it is made of: 6063-T5 architectural aluminum, in a 48 inch rounded profile that pressure-fits into a routed MDF or wood groove with no adhesive. It still does not publish what the reinforced groove then holds, which is the number anyone buying reinforcement actually wants.

Published rating

Not published — no load figure from this manufacturer

Dimensions

48" L x 1.23" H x 0.5" W per insert; 10 inserts per packRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

6063-T5 architectural aluminum, black anodizedRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• States its alloy and temper - 6063-T5 - which nothing else here does
• Pressure-fit: no adhesive and no hardware, per the listing
• Published per-insert profile, so you can check it against your groove
• Made in the USA, stated, with a named manufacturer behind it

What is not

• Publishes no load rating, so the reinforcement it adds is unquantified
• The dearest way to do a wall, several times the cost of the plain packs
• Ten inserts per pack means a 4 x 8 panel needs about two packs
• Fits routed MDF and wood grooves - not a substitute for a PVC panel

It names its alloy. That sounds like a small thing and on this page it is the whole difference: 6063-T5 is a specific architectural aluminum temper you can look up, which means the one material claim here is checkable. The profile is published too — 48 inches long, 1.23 inches high, half an inch wide — so you can measure your groove before you buy rather than after. Pressure-fit, no adhesive, no hardware.

It is the most expensive way to do this by a wide margin, and a 10-pack covers ten grooves, so a single 4 by 8 panel at 3 inch centers takes roughly two packs — a figure the listing does not do for you. And for all the material disclosure, it publishes no load rating, so what the reinforced groove actually holds is still unknown. It fits routed MDF and wood; it is not an upgrade path for a PVC panel.

Most grooves per dollar

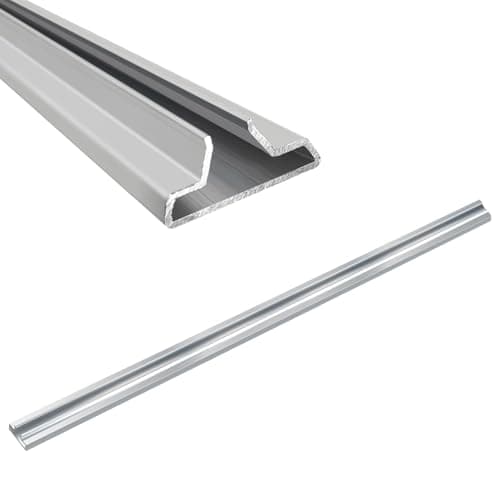

JYD 48" Aluminum Slatwall Inserts, 15-Pack

JYD · SM100-24-15pcs 48" Aluminum Slatwall Insert

$79.00 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 13, 2026.

Fifteen 48 inch aluminum inserts at roughly half the cost per groove of anything else here, and a listing that publishes two sentences. It says the word reinforcement and gives you no alloy, no profile, no thickness and no rating to check it against.

Published rating

Not published — no load figure from this manufacturer

Dimensions

48" inserts, 15 per packRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

Not published

Coverage

Not published

Warranty

Not published

What is good

• Fifteen inserts a pack, the most grooves per purchase on this page
• 48 in. length stated, which matches a standard 4 ft panel run
• The cheapest route to reinforcing a full wall of grooves

What is not

• Publishes no load rating, like every insert here
• Publishes no alloy, no profile and no thickness either - just aluminum
• Listed under the brand name Generic on Amazon, with JYD as manufacturer
• Nothing stated about fit tolerance, so groove compatibility is a gamble

Fifteen 48 inch inserts for roughly half the cost per groove of the pack above, which if you are lining a whole wall is a real difference. The length is right for a standard 4 foot panel run, and fifteen is enough to do most of a 4 by 8 panel in one purchase.

What you are buying is the word aluminum. The listing runs to two sentences: no alloy, no profile height, no wall thickness, no fit tolerance and no rating. It also sells under the brand name Generic, with JYD as the manufacturer, which tells you how much support to expect if the profile turns out not to match your grooves. For a shop fitting that is probably fine. For a garage wall holding anything you would be upset to drop, the cheaper pack is the one that asks you to take more on trust.

Decorative only - read this before buying

Store Fixtures Direct Slatwall Vinyl Insert, 130 ft Roll

Store Fixtures Direct · A-R130BK Slatwall Vinyl Insert Accent Strip

$22.95 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 13, 2026.

A decorative strip, and this page's most useful warning: it is sold as a slatwall insert and it has nothing to do with strength. One roll is published as covering sixteen slats on a 4 by 8 panel at 3 inch centers, which is the only coverage figure any insert here states.

Published rating

Not published — no load figure from this manufacturer

Dimensions

130 ft roll x 1.25" high, glossy vinylRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

Vinyl, glossy finishRetailer listing

Coverage

One roll covers 16 slats on one 4 ft x 8 ft panel at 3 in. on centerRetailer listing

Warranty

Not published

What is good

• Publishes its coverage AND the groove spacing that figure assumes
• Cuts with scissors, so no tooling and no waste on an odd run
• Cheapest insert here by a wide margin, and honest about what it does
• Does not claim to strengthen anything, which is the correct claim

What is not

• Adds no strength at all - buy it for looks or do not buy it
• Only fits grooves at 3 in. on center; other spacings are not addressed
• Vinyl in a garage that swings from freezing to 100F is unproven here
• Easy to buy by mistake when searching for reinforcement inserts

This is on the page as a warning as much as a recommendation. It is a 130 foot roll of glossy vinyl, an inch and a quarter high, and it is for changing how a slatwall looks. It adds nothing to what the wall holds. If you came here from a search for reinforcement, this is the product to avoid — and it is the cheapest result in most of those searches.

Judged as what it actually is, it is the best-documented product on the page: it publishes its coverage AND the groove spacing that figure assumes — 16 slats on one 4 by 8 panel at 3 inch centers — which not one of the structural products here manages. It cuts with scissors. Two honest limits: it only addresses 3 inch on-center spacing, and vinyl through a garage winter and a garage August is not something anyone publishes data on.

For hanging something slatwall was not made for

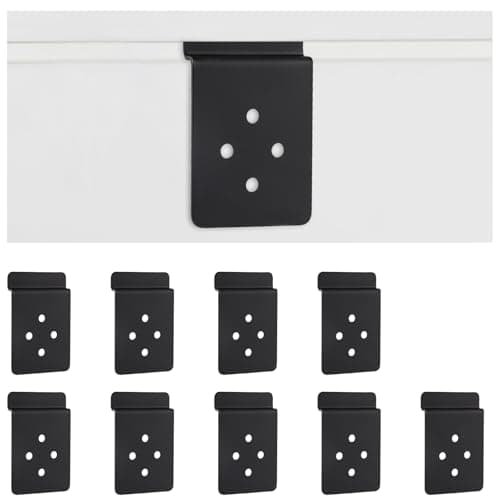

Sanbege Slatwall Backplate Mounting Adapter, 10-Pack

Sanbege · CSL-US-20251120-01 Slatwall Metal Plate Mount Backplate (10-Pack)

$16.99 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 13, 2026.

The third thing the word insert gets used for, and the one with a real job: a 3.4 by 2.2 inch powder-coated plate with four pre-drilled holes that screws to the back of something never made for slatwall, so it hangs on it. No rating published, which on a bracket carrying the whole load is the omission that matters most.

Published rating

Not published — no load figure from this manufacturer

Dimensions

3.4" H x 2.2" L per plate; 10 plates per pack, four pre-drilled holes eachRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

Steel with rustproof powder coatingRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• Turns anything with a flat back into something slatwall can hold
• Published plate size, so you can check it against the item's backing
• Four pre-drilled holes, two of them specifically for slatwall support
• Powder-coated, which matters on a plate screwed to a garage wall

What is not

• No load rating, on the one part here that carries the entire load
• No steel thickness or gauge published
• 3.4 by 2.2 in. is small, so it concentrates load on two slats
• Not an insert in the structural sense, despite the search term

Ten powder-coated steel plates, 3.4 by 2.2 inches, four pre-drilled holes each — two to screw into the back of your object, two for extra purchase on the slatwall. Screw one onto a shop-made jig, a battery charger, a plastic bin lid or a shelf you built, and it hangs on the wall like a bought accessory. This is the genuinely clever product in the category.

It publishes no load rating, which matters more here than anywhere else on this page, because the plate is not reinforcing something that already carries the load — it IS the thing carrying the load. No steel thickness or gauge either. And at 3.4 by 2.2 inches it is small, so it concentrates everything it holds onto two slats. Keep what you hang on it light, and do not use it to shortcut a proper bracket.

Compare them per groove, not per pack

The packs here hold ten and fifteen inserts, so the headline prices are not comparable as printed — the same trap the panel coverage guide documents for panels sold as sections. Divide by the insert count and you get a cost per groove, which is the only figure that lets you price a wall. On that basis the fifteen-pack is roughly half the cost per groove of the alloy-stated pack, and the gap widens the more grooves you line.

Then decide how many grooves actually need lining, because nobody will tell you that you can stop. A 4 by 8 panel has sixteen slats and most garage walls load maybe a third of them — the band at chest height where the hooks go. Lining the loaded grooves and leaving the decorative ones bare is a legitimate halving of the bill that no listing suggests, since every listing is written for a retail fit-out where the whole wall is on show.

Why the MDF groove is the weak point at all

Worth being specific, because it is the entire reason this product category exists. A routed MDF panel has its slat profile cut into compressed wood fiber. The lip of that groove — the few millimeters of material the hook actually hooks behind — is end-grain fiber held together with resin, and a hook under load applies a prying force to exactly that lip. It does not snap cleanly. It crushes, then it crumbles, and the hook starts to sit progressively lower and looser until it comes out.

That failure is slow and it is cumulative, which is why it rarely shows up in a review and why humidity makes it worse: MDF takes up moisture, and damp fiber crushes more readily than dry fiber. In a garage that goes through a wet winter, this is the mechanism that quietly ages a slatwall. An aluminum liner removes it, because the hook now bears on an extrusion rather than on wood. That is the honest case for an insert, and it is a durability case rather than a capacity one.

Which one you actually need

Three questions, and they resolve in order. Is your panel MDF or wood with routed grooves? If it is PVC or extruded aluminum, stop — the groove is already the material, and an insert is not a product for you. Are you trying to make it hold more, or look different? Hold more means an aluminum insert, with the caveat above that you are buying a mechanical argument rather than a number. Look different means vinyl, and nothing else on this page. Are you trying to hang a specific awkward object? Then neither — you want backplates, and you want them sized against that object’s backing before you order.

There is a fourth answer worth saying out loud: often the right move is no insert at all. If the wall is not up yet, spending the insert money on a panel that publishes a real per-square-foot rating buys you a number you can plan a shelf against, which no quantity of aluminum strip will. The panel materials comparison is the better place to spend that budget, and how many panels you need will tell you how far it goes.

What nobody publishes

Four gaps, consistent across every product here. No load rating, on any of the four, including the two sold as reinforcement and the one that carries the entire load itself. No before-and-after figure from any panel maker, so the improvement an insert delivers is nowhere on record. No fit tolerance, so whether a given insert seats properly in a given brand’s groove is discovered on arrival. And no temperature range, which in an unconditioned garage is a fair question of both the vinyl and the adhesive-free press fit.

One last practical note. Inserts go in before anything hangs on the wall and ideally before the panels are screwed down, because a pressure-fit strip is much easier to seat along a free edge than in a channel at head height with a hook rail already in the way. If the panels are going up this weekend, buy the inserts in the same order — the install sequence in how to install slatwall assumes the groove is finished before the wall is loaded.
