Best shelving for storage totes

Seventy-seven inches wide by twenty-four deep, four tiers, 2,000 lb published per shelf on a 4 mm steel mesh deck. Two 27-gallon totes sit side by side lengthwise on each shelf with about 20 inches to spare, and nothing overhangs the front edge. For the specific job of storing totes in a two-car garage, that geometry is the whole answer.

Four tiers over a 72 inch upright means roughly 18 inches per level before you account for the shelf thickness, which is fine for totes and tight if you wanted a level for tall items. A mesh deck rather than a flat panel is the thing to know for totes: 4 mm is substantial enough that a rigid tote sits flat on it, but a soft-bottomed tote will still take the pattern of the mesh. The frame is rivet-locked rather than welded, which is what makes it a tool-free assembly.

The same 77 by 24 inch footprint, the same four adjustable tiers and the same published 2,000 lb per shelf, for meaningfully less money. If the rack is going to live against a garage wall holding plastic boxes, the cheaper of two identically specified racks is the rational buy.

“Identically specified” is doing work in that sentence: this publishes no gauge, no upright thickness and no beam rating separate from the shelf figure, and unlike the Bepatio above it does not say what the decking is either. Check the frame in person if you can.

The only rack here that publishes how finely its shelves adjust: 1.5 inch increments. With a 15.5 inch tote that is the difference between a level that fits and a level that wastes four inches of upright, and over a 72 inch frame those inches are the difference between three usable tote levels and four.

It is the one pick here we cannot deep-link to a specific listing, so the buy button runs an Amazon search rather than opening a product page — the same reason it carries a published 1-year warranty and little else. Capacity is the familiar 2,000 lb per shelf with no gauge behind it.

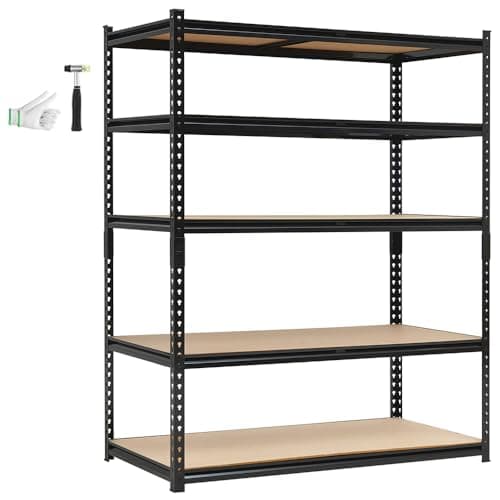

Five height-adjustable tiers, 24 inches deep, in only 48 inches of wall — the right shape when the tote wall is a bay between a door and a bench rather than a long run. A 27-gallon tote sits fully supported on that depth, and the tiers adjust to the 15.5 inch tote height rather than being fixed where the factory put them.

The published 2,000 lb is a maximum for the whole unit, not a per-shelf figure, so the number you would actually plan one shelf against is missing. The decks are MDF rather than steel or wire, which is the wrong material for a damp garage, and the frame bolts together rather than being welded. One tote per shelf lengthwise is the honest limit at this width.

Wire shelving with a published 800 lb per shelf, five adjustable levels, a 10-year limited warranty and casters as an option — and wire is the right surface where damp is the enemy, because nothing pools and air moves around whatever is sitting on it.

It is 18 inches deep, so a 19.6 inch tote overhangs by about 1.6 inches. That is not dangerous with a 47 lb-empty rack of this quality, but the front lip of every tote is unsupported and the stack leans into the aisle. Buy it for bins smaller than a 27-gallon tote, or for a damp garage where the trade is worth it.
