Best slatwall shelves

This site has already ranked slatwall hooks, and the finding there was that four of six accessory sets publish no weight rating at all. Shelves looked like they would be the same story. They are not, and the reason is mechanical rather than editorial: a hook holds its load within an inch or two of the panel face, and a shelf holds it six, eight or ten inches away. Those are not the same demand on a plastic or aluminum groove, and the industry has one number for both.

The number that governs a slatwall shelf, and nobody publishes it

A shelf bracket is a cantilever. Load sitting at the front edge of a 10 inch shelf does not just press down on the slot; it levers the top of the bracket out of the groove. Double the reach and you double the moment for the same weight. Every engineer knows this, and exactly one brand in this entire category publishes what it costs.

Read that against the roundup below. The shallowest shelf here reaches 5 inches; the deepest reaches 10. Both are past the four inch mark where storeWALL’s own panel has already given up nearly half its rating, and neither listing mentions distance at all. That is not a reason to avoid slatwall shelves — they are the right answer for a great many things — but it is the reason to treat every number in the next table as describing the shelf rather than the wall.

What the five shelves actually publish

The bottom row is the point of the table. Five shelves, three materials, a fourfold spread in price, and the one specification that decides whether any of the others mean anything is blank across the board.

Depth is the specification, and the deep ones say the least

Sort the table by depth and something uncomfortable appears. The shallowest shelf here, at 5 inches, publishes no weight. The deepest, at 11.8 inches, publishes the lowest weight of anything in the roundup — and publishes it as a range. The 10 inch SINCHEEWAY publishes no weight either. In other words, the three products asking the most of the slot are the three that tell you least about it, and the only firm per-bracket number in the class sits on the second shallowest shelf.

That is worth saying plainly because the buying instinct runs the other way. A 24 by 10 inch steel shelf looks far more capable than a 12.5 by 5 inch one, and in pure shelf area it is. On the groove it is the harder ask, and nothing on either listing lets you tell by how much.

The only per-shelf number in the class, and it is ours

No maker here publishes a figure for a complete shelf. WETOECOTEC comes closest: it publishes 30 lb per bracket, and its pack supplies eight brackets for four shelves. Two brackets per shelf at a published 30 lb each gives 60 lb per shelf — and we are labeling that as our own arithmetic rather than a specification, because that is what it is.

It carries two assumptions worth stating. It assumes the load is shared evenly between the two brackets, which a single heavy object placed off center does not do. And it assumes the 0.6 inch board is not the weaker element, which on a 15.8 inch span is plausible but unpublished. Treat 60 lb as a ceiling arrived at by multiplication, not as a rating anyone has stood behind.

Compatibility is the failure that actually happens

Capacity is the specification buyers ask about. Fit is the one that actually ruins the afternoon, because slot geometry is not standardized and a shelf that will not seat is a shelf you are returning. Two of the five name the systems they fit. One goes further, and it is the most useful sentence on any listing in this roundup: SINCHEEWAY states the five systems it does NOT fit — Gladiator, Husky, Suncast, Craftsman and Rubbermaid FastTrack.

That matters on this site in particular, because Gladiator and Rubbermaid FastTrack are two of the most-searched wall systems we cover and neither takes a generic slatwall accessory. If you are on one of those, what fits what is the page to read before anything in this roundup, and the GearTrack and FastTrack comparison covers the two proprietary rails directly.

The five shelves, and the bracket route

Best documented

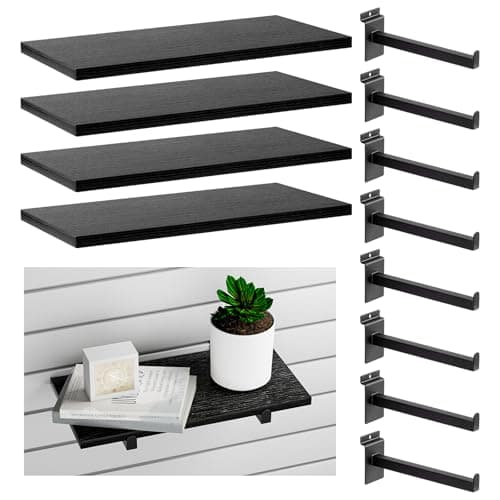

WETOECOTEC Wood Slatwall Shelves, 4-Pack

WETOECOTEC · Wood Slatwall Shelves, 4-Pack (16" x 8")

$35.99 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 30, 2026.

The only complete shelf in this class that publishes a weight figure AND names the panel brands it fits: 30 lb per bracket, two brackets per shelf, on 0.6 inch board. Everything else here either gives you a number or a compatibility list, and mostly neither.

What the rating assumes

Load distance:

not stated by the manufacturer, so treat the figure as a flat-against-the-wall number

Fastening:

Per bracket, clipped into the groove; two brackets per shelf

Published as "each bracket support up to 30 LBS", the same figure WETOECOTEC publishes for its brackets sold on their own. The brackets are 8 inches long, so the entire rating is a cantilever rating - and no load distance is stated anywhere on the listing.

Published rating

30 lb totalRetailer listing

Per shelf

60 lb / shelfOur arithmetic

Dimensions

4 shelves 15.8" W x 8" D x 0.6" H, plus 8 steel brackets 8" longRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

0.6 in wood boardRetailer listing

Material

Black-painted wood board on powder-coated steel tubing bracketsRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• Publishes a per-bracket weight figure, which three of the five here do not
• Names the panel brands it fits rather than claiming 'most slatwall'
• Steel tubing brackets rather than folded flat stock
• A board thickness is published, at 0.6 inches
• Four shelves and eight brackets in one pack

What is not

• No load distance stated, and an 8 inch bracket is all load distance
• Wood board in a garage is the first thing in the box to swell if it is damp
• Retail-listing figures rather than a manufacturer spec sheet
• The 60 lb per shelf figure is our arithmetic, not a published number

The only complete shelf here that publishes a weight figure and names the panels it fits. Thirty pounds per bracket on 8 inch steel tubing, four boards at 15.8 by 8 inches, and a published 0.6 inch board thickness — which no steel shelf in this roundup matches with a gauge of its own. It is the same 30 lb bracket figure WETOECOTEC publishes for its brackets sold separately, so the two listings at least agree with each other.

The costs are the usual ones for wood in a garage and the usual one for this whole class. A painted board is the first thing in the box to swell if the garage runs damp, and the 30 lb figure still has no distance attached to it on an 8 inch cantilever. The 60 lb per shelf figure above is our multiplication, not theirs.

Best compatibility disclosure

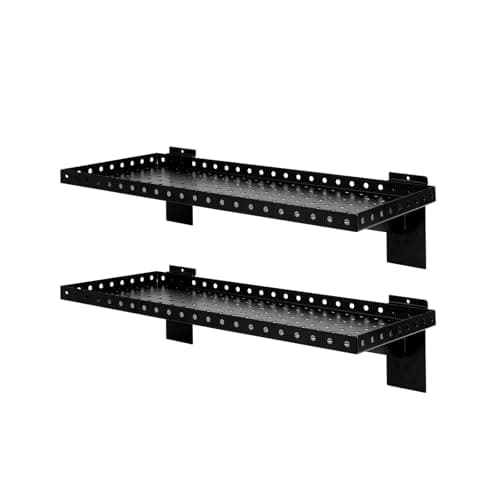

SINCHEEWAY 24" Slatwall Shelves, 2-Pack

SINCHEEWAY · Slatwall Shelves 24", 2-Pack

$53.99 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 30, 2026.

The only accessory on this site that publishes what it does NOT fit. SINCHEEWAY names five panel systems it is incompatible with, by brand, which is more useful than any capacity claim in this class - because the usual failure here is a shelf that will not seat in your groove.

Published rating

Not published — no load figure from this manufacturer

Dimensions

24" W x 10" D, 2 shelves per packRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

Thick powder-coated steel with an added support frameRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• Names the five panel systems it does NOT fit, which nothing else here does
• Widest and deepest shelf in the roundup at 24 by 10 inches
• An added support frame rather than a plain folded tray
• Seats without tools and can be repositioned

What is not

• No weight figure published at all, per shelf or per bracket
• 10 inches deep is the longest cantilever here, with no load distance given
• No steel thickness published - "thick steel" is the whole claim
• Two shelves per pack at the second-highest price here

Two feet wide, ten inches deep, thick powder-coated steel with an added support frame, and the only listing on this site that tells you what it will not fit. Naming Gladiator, Husky, Suncast, Craftsman and Rubbermaid FastTrack as incompatible is a seller choosing to lose sales rather than take returns, and it is the single most useful thing any accessory listing in this category does.

Then it publishes no weight at all. On the deepest shelf in the roundup — the one putting the most leverage on the groove — there is no figure per shelf, none per bracket, and no steel thickness behind “thick steel”. Buy it for the fit information and the shelf area; do not buy it expecting to know what it holds.

Shortest reach

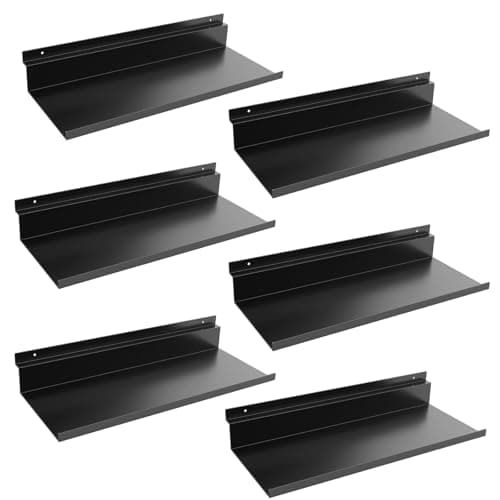

Daanxw 12.5 x 5 in Metal Slatwall Shelves, 6-Pack

Daanxw · sw-6 Metal Slatwall Shelves, 6-Pack (12.5 x 5 in)

$36.99 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 30, 2026.

Six small shelves for the price of two big ones, and at 5 inches deep they put less leverage on the slot than anything else here. That is a real engineering advantage it never claims, because the listing publishes no weight, no thickness and no compatibility list.

Published rating

Not published — no load figure from this manufacturer

Dimensions

12.5" W x 5" D, 6 shelves per packRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

Powder-coated steelRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• Six shelves in a pack, the most here
• 5 inches deep is the shortest cantilever in the roundup
• Seats without tools or extra hardware
• Six identical small shelves suit a dense array better than two deep ones

What is not

• Publishes no weight figure, no gauge and no steel thickness
• No named compatibility - the listing says only 'suitable slatwall'
• 12.5 by 5 inches holds far less per shelf than the 24 inch units
• The listing is explicit that no panel is included, which is easy to misread

Six shelves at 12.5 by 5 inches. On the cantilever logic that runs through this page, 5 inches is the best thing a slatwall shelf can be: it is the shortest lever arm here, the closest to the only distance storeWALL actually publishes a figure for, and six of them cover a lot of wall in small, sensible increments.

It publishes nothing — no weight, no gauge, no thickness, and no named compatibility beyond “suitable slatwall”. So the engineering advantage it has is one we are inferring from its dimensions rather than one it claims, and if your panel is a proprietary rail you are buying on hope. The listing is at least explicit that no panel is included, which is a genuine source of confusion in this category.

Only published thickness

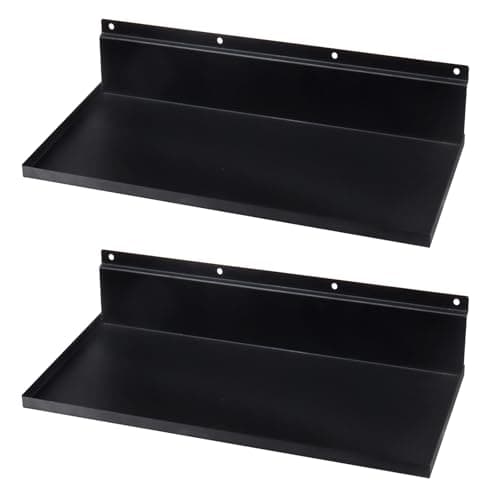

Alffun 17 x 8 in Metal Slatwall Shelves, 2-Pack

Alffun · Alffun-155 Metal Slatwall Shelves, 2-Pack (17 x 8 in)

$25.99 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 30, 2026.

The cheapest way onto a slatwall shelf, and the only steel one here that publishes a material thickness: 1.2 mm. It also headlines "stronger load-bearing capacity" and then publishes no load at all, which is the pattern this whole class is built on.

Published rating

Not published — no load figure from this manufacturer

Dimensions

17" W x 8" D, 2 shelves per packRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

1.2 mm metalRetailer listing

Material

1.2 mm metal with a matte black scratch-resistant coatingRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• Publishes a 1.2 mm material thickness, the only steel figure in the roundup
• An edge lip to stop small items sliding off the front
• The lowest pack price in the roundup
• Seats without tools and can be repositioned

What is not

• Headlines "stronger load-bearing capacity" and publishes no weight at all
• No load distance, on an 8 inch cantilever
• Compatibility is "standard slatwall panels" with no brand named
• Only two shelves per pack

The lowest pack price here, and the only steel shelf in the roundup that publishes a material thickness: 1.2 mm, with a matte coating and an edge lip to stop small parts sliding off the front. For scale against figures already on this site, a budget full-height steel locker publishes 0.88 mm and a VEVOR wall cabinet publishes 0.6 mm, so 1.2 mm is genuinely substantial metal for an accessory.

It is also the clearest example of the pattern this page is about. The first bullet on the listing is headed “stronger load-bearing capacity” and the listing then publishes no load at all, in any unit, at any distance. A thickness is a construction fact, not a rating. Two shelves per pack, and compatibility is “standard slatwall panels” with no brand named.

If you supply the boards

WETOECOTEC 8" Slatwall Shelf Bracket, 12-Pack

WETOECOTEC · 8" Square Tubing Slatwall Shelf Bracket (12-Pack)

$26.99 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 30, 2026.

The only slatwall accessory in this comparison that publishes an unambiguous weight figure: 30 lb per bracket, on thick steel square tube. It also names the panel brands it fits instead of saying 'most slatwall', which is the second thing nobody else does.

What the rating assumes

Load distance:

not stated by the manufacturer, so treat the figure as a flat-against-the-wall number

Fastening:

Per bracket, clipped into the slatwall groove

Published as supporting up to 30 lbs, on a bracket crafted from thick steel square tube. No load distance is stated, which on an 8 inch cantilevered bracket is the figure that would matter most.

Published rating

30 lb totalRetailer listing

Dimensions

8" bracket with a lip; 12 brackets per packRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

Powder-coated steel square tubeRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• Publishes a per-bracket weight figure, which almost nothing else here does
• Names the panel brands it fits rather than claiming 'most slatwall'
• Steel square tube rather than folded flat stock
• Twelve brackets per pack, enough for several real shelves

What is not

• No load distance published, and an 8 inch bracket is all load distance
• You supply the shelf boards; the pack is brackets only
• Retail-listing figures rather than a manufacturer spec sheet
• A lipped bracket suits boards, not wire or glass

The same 30 lb per bracket figure and the same named compatibility list, twelve brackets to the pack, and no boards. If you have offcuts of ply or shelf board already, this is the cheaper and more flexible route: you choose the depth, which on the evidence of this page is the specification that matters most, and you can keep it short on purpose.

You are doing the work and sourcing the boards, the lipped bracket suits board rather than wire or glass, and the 30 lb figure has no distance attached to it here either. It is ranked below the complete shelves because most readers want a shelf, not a project.

We would skip this one

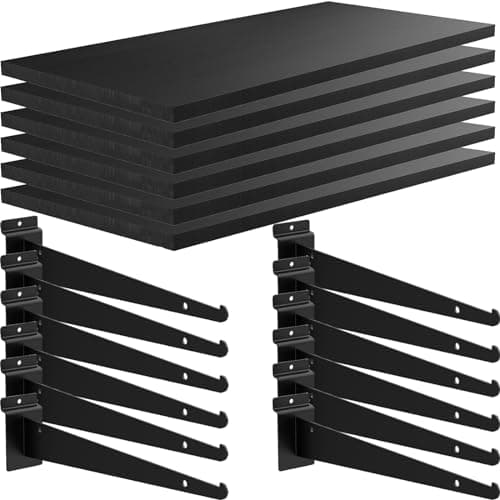

Tcevily Wooden Slatwall Shelf, 6-Pack

Tcevily · TV228 Wooden Slatwall Shelf, 6-Pack (23.6" x 11.8")

$109.99 · View on Amazon→

#ad We earn a commission if you buy through this link, at no extra cost to you. How this site is funded. Prices last checked October 30, 2026.

The most shelf area in the roundup and the lowest published capacity in it, at the highest price. Tcevily states its brackets support "up to 15-20 lbs" - a range rather than a figure - on the largest board here. That combination is why we would not buy it.

What the rating assumes

Load distance:

not stated by the manufacturer, so treat the figure as a flat-against-the-wall number

Fastening:

Per bracket; two brackets per shelf, twelve in the pack

Published as brackets that "can support up to 15-20 lbs" - a range, not a figure. We record the lower bound because it is the only number in that range a buyer can plan against, and the listing never says what separates a 15 lb case from a 20 lb one. Either way it is the lowest published capacity of anything in this roundup, on its largest board.

Published rating

15 lb totalRetailer listing

Dimensions

6 boards 23.6" W x 11.8" D, plus 12 metal bracketsRetailer listing

Steel gauge

Not published — this manufacturer does not state one

Thickness

Not published

Material

Black wood board on metal bracketsRetailer listing

Coverage

Not published

Warranty

Not published

What is good

• Most shelf area per pack here - six boards at nearly two feet wide
• Metal brackets, two per shelf, twelve supplied
• It does publish a capacity, which three of the five do not

What is not

• The capacity is a range - "up to 15-20 lbs" - rather than a figure
• The lowest published capacity in the roundup, on the largest board
• Dearest here by a wide margin, at roughly four times the cheapest pack
• No load distance, no board thickness and no named compatibility
• Wood board at nearly 12 inches deep is a lot of unsupported span

Six wood boards at nearly two feet wide with twelve metal brackets, which is by a distance the most shelf area in this roundup. If shelf area per pack were the only criterion it would win.

It is not, and the reasons are all on its own listing. The brackets are published as supporting “up to 15-20 lbs” — a range rather than a figure, with nothing to say what separates a 15 lb case from a 20 lb one. That is the lowest published capacity of anything on this page, on the largest board, at roughly four times the cheapest pack here. No board thickness, no load distance and no named compatibility either. A big wood shelf at nearly 12 inches of unsupported reach is exactly the load this class is worst at, and this is the listing that tells you least about it.

For what the panel itself is rated to carry before any accessory is hung on it, the capacity reference collects every published figure in the category in one unit. And if what you actually want on the wall is a cabinet rather than a shelf, that question has its own answer — and it is mostly no.
